MT776XPSH
-
DESCRIPTION

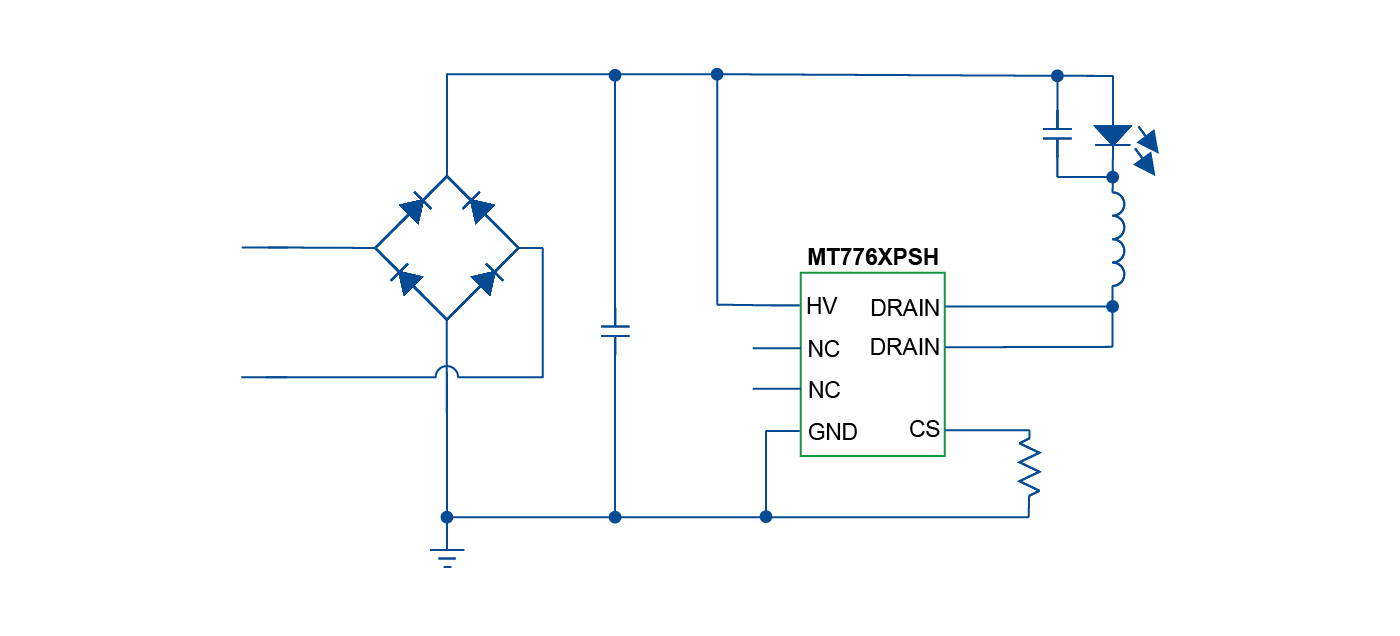

MT776XPSH is a high precision constant current LED driver which operates under critical conduction mode (CRM). It is mainly targeted for non-isolated buck LED power systems.
MT776XPSH is suitable for applications with 85Vac~265Vac input voltage range.
MT776XPSH integrates 500V power MOSFET and free-wheeling diode. With innovative internal high voltage power supply solution, no external VCC capacitor and startup resistor are needed, which achieves simplified peripheral circuits and low BOM cost.
The high precision and fast current sensing circuit can support high frequency switch operation and get excellent line regulation. The system operates under CRM which makes the output current is insensitive to the inductance and keeps good load regulation.
MT776XPSH provides various protections to improve the system reliability, including short circuit protection (SCP), and thermal adjustment, etc.
-
FEATURES
Integrates 500V power MOSFET and free-wheeling diode
No VCC capacitor and startup resistor
Supports high frequency switch operation, SMD inductor can be used
Operates under CRM, insensitive to the inductance
No flicker at low line voltage
±5% highly accurate constant LED current
LED short circuit protection
Under-voltage lockout (UVLO) protection
Thermal regulation function
Available in SOP7 package
-
LED bulb, LED tube, LED signal and landscape lamp
-
LED candle light, LED corn light, etc
-
LED color temperature switch and sensor light applications
-
General purpose constant current source
