  • 產(chǎn)品概述

    MT3211 is a highly sensitive wide dynamic range digital ambient light sensor (ALS) with a low-profile and small footprint.

    It includes Photopic, Clear and Flicker photodiodes (PDs), which provide ambient light and flicker frequency information of the ambient light source.

    MT3211 architecture accurately measures the ambient light, provides ultra-high sensitivity for luminance detection and very useful for smart lighting management, especially in robust backlight brightness, display appearance, camera flicker control.


  • 產(chǎn)品特性
    • Excellent light transmittance designed for best sensitivity

    • Output ALS and Flicker in parallel

    • Fully digital control with I2C interface operating within 1.2V ~ 3.6V VDD range

    • Wide range of VDD voltage: 1.7V ~ 2.0V

    • Idle mode current: 2μA

    • Sleep mode current: 0.35μA

    • Enables superior detections

    1024 bytes FIFO

    Up to 7kHz flicker detection

    16-bit digital data output

    Programmable gain and integration time

    4096x dynamic range by gain adjustment

    Flicker-immune ALS sensing with programmable integration time

    Temperature compensation

    Approximates human eye response

    1MHz fast I2C Interface

    • RoHS compliant lead-free OLGA package for smart lighting devices


典型應(yīng)用
  • Display managemen

  • Ambient light sensing and flicker detection

  • Backlight management

  • Flicker-immune camera operation

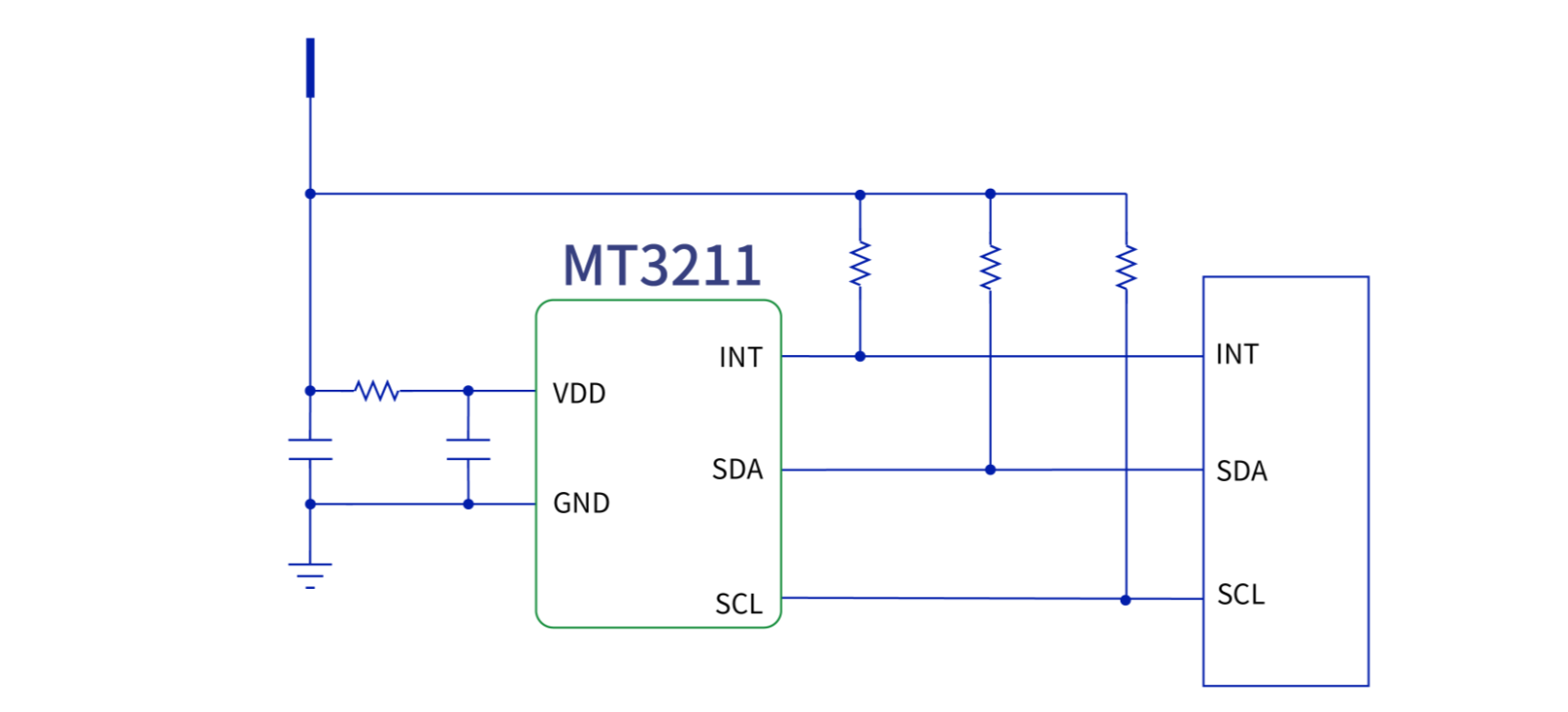

  • 3211.png
