  • 產(chǎn)品概述

    MT3801 is a miniature optical Direct Time-of- Flight (dToF) sensor. The sensor integrates a 940nm Vertical-Cavity Surface-Emitting Laser (VCSEL), and is based on Single-Photon Avalanche Diode (SPAD), Time-to-Digital Converter (TDC), and histogram architecture.

    MT3801 is capable of achieving a distance measurement of 4000mm, a high ranging speed up to 120Hz. In addition, the precise ranging of an object is irrespective to color, reflectivity and texture of the object.

    A built-in histogram-based algorithm with cover glass calibration and compensation for smudges is implanted for high reliability operations. Ambient light noise is minimized due to narrow band optical filter and built-in sunlight rejection algorithm, making the chip available to outdoor sunlight environment for distance measurement.

    MT3801 processes all data internally and provides distance information and confidence values via its I2C interface.


  • 產(chǎn)品特性
    • Integrates 940nm IR VCSEL emitter

    • Measures absolute range up to 4000mm

    • SPAD, histogram and TDC architecture

    • Class 1 Eye-safety

    • No impact on reflections from multiple objects

    • Designed with ambient light suppression and cover glass calibration technologies

    • Xshutdown (reset) and interrupt GPIO

    • Programmable I2C address with 400kHz~1MHz frequency

    • No additional optics

    • Compact OLGA12 package

典型應(yīng)用
  • Laser detection autofocus

  • 1D gesture recognition

  • Collision avoidance

  • Object detection in energy saving mod

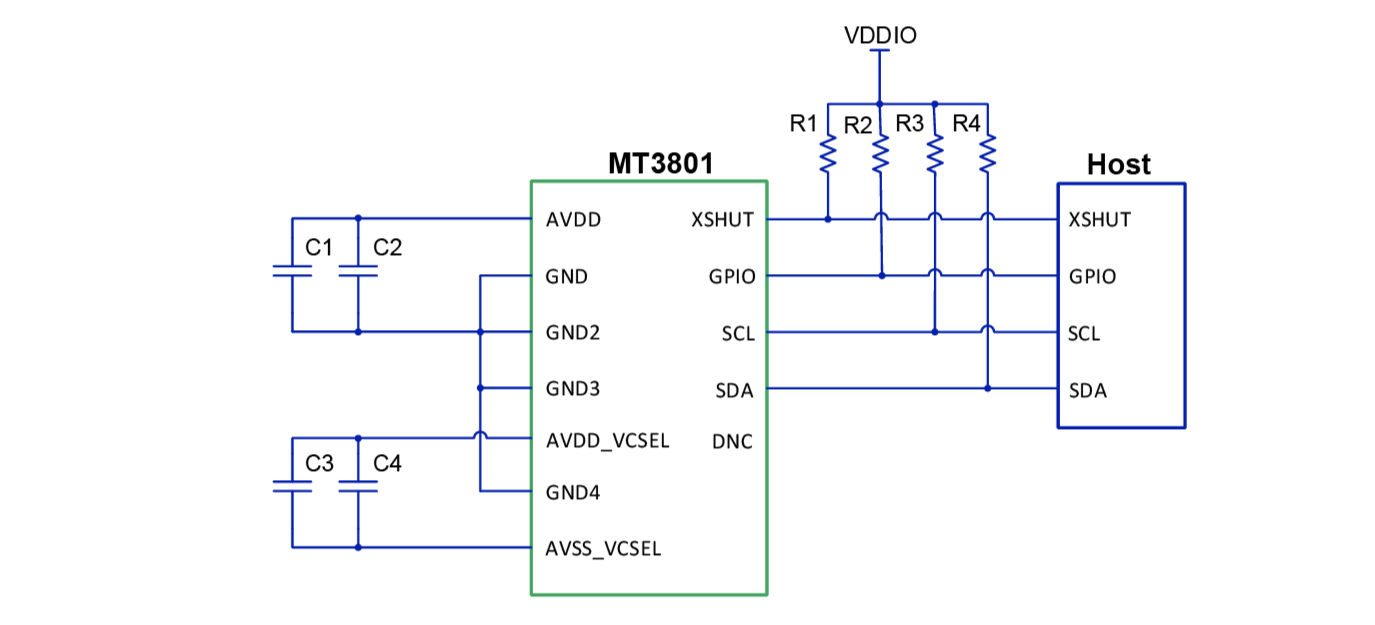

  • MT3803x.png
